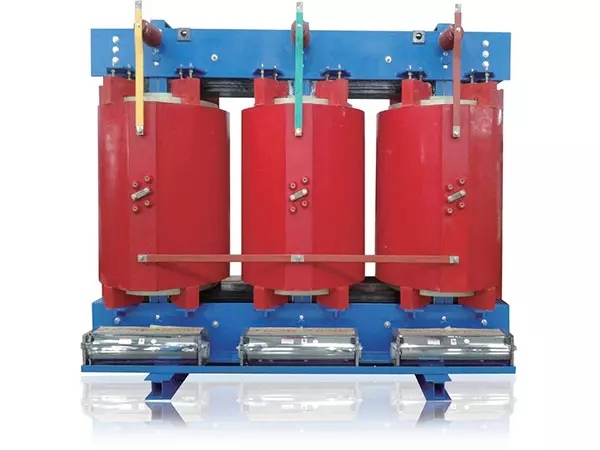

Sc(Z)B11~18 Epoxy-Resin Insulation Dry-Type Transformer

>> Product Advantage

1. Flame-Retardant & Explosion-Proof Design

Our epoxy-resin dry-type transformers meet IEC 60076-11 standards with self-extinguishing properties (oxygen index >40%). The 100% oil-free construction eliminates fire hazards, making them ideal for high-risk areas like chemical plants and underground mines.

2. High-Temperature Resistance (H-Class Insulation)

Featuring 180°C-rated insulation, our transformers outperform standard F-class (155°C) units with 20% longer lifespan. The glass-fiber reinforced epoxy encapsulation withstands thermal shocks, ensuring stable operation in -40°C to +50°C environments.

3. Ultra-Low Energy Loss (Up to 99% Efficiency)

Advanced amorphous core technology reduces no-load losses by 30% compared to conventional models (SCB13: ≤0.33W/kg). Achieves Energy Efficiency Level 1 certification.

4. Smart Monitoring Ready (IoT Integration)

Equipped with built-in PT100 sensors and RS485 interface for real-time monitoring of temperature, load, and harmonics. Our TX-3000 cloud platform enables predictive maintenance, reducing downtime by 40%.

>> Product Uses

1. Commercial Complexes & High-Rise Buildings

Ideal for shopping malls and office towers due to compact size and fire safety (meets NFPA 70 standards). The 55dB low-noise operation ensures quiet environments, while H-class insulation supports 24/7 air-conditioning loads.

2. Mission-Critical Facilities

Essential for hospitals (ICU power backup), data centers (Tier III/IV), and airports where 99.99% uptime is required. Our transformers’ <0.5% failure rate ensures uninterrupted operation.

3. Industrial Manufacturing

Withstands harsh factory conditions – dust (IP54), humidity (95% RH), and chemical corrosion. Special harmonic-resistant design protects CNC machines in automotive plants.

4. Renewable Energy Systems

Wind/solar farms benefit from its -40°C cold-start capability and 150% temporary overload capacity.

5. Transportation Infrastructure

Vibration-resistant design perfect for subway traction power (EN 45545 fire rating) and EV charging stations.
