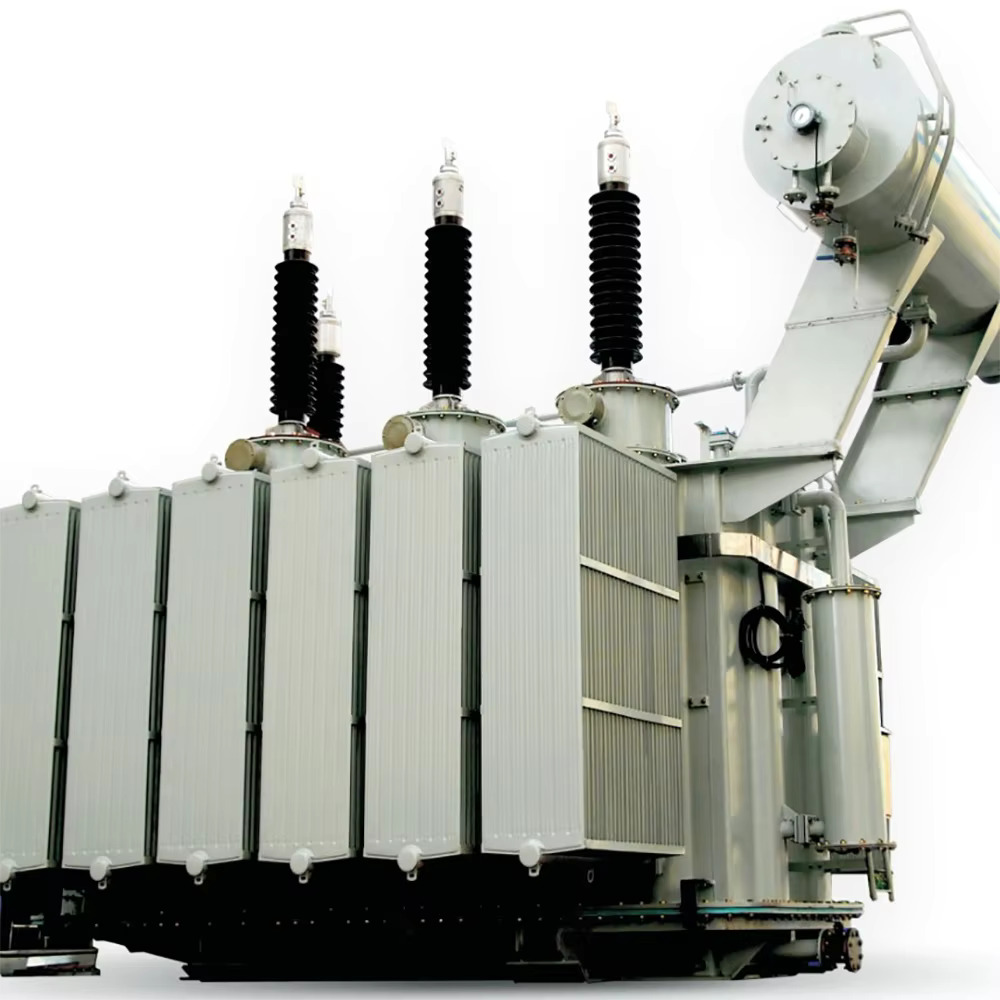

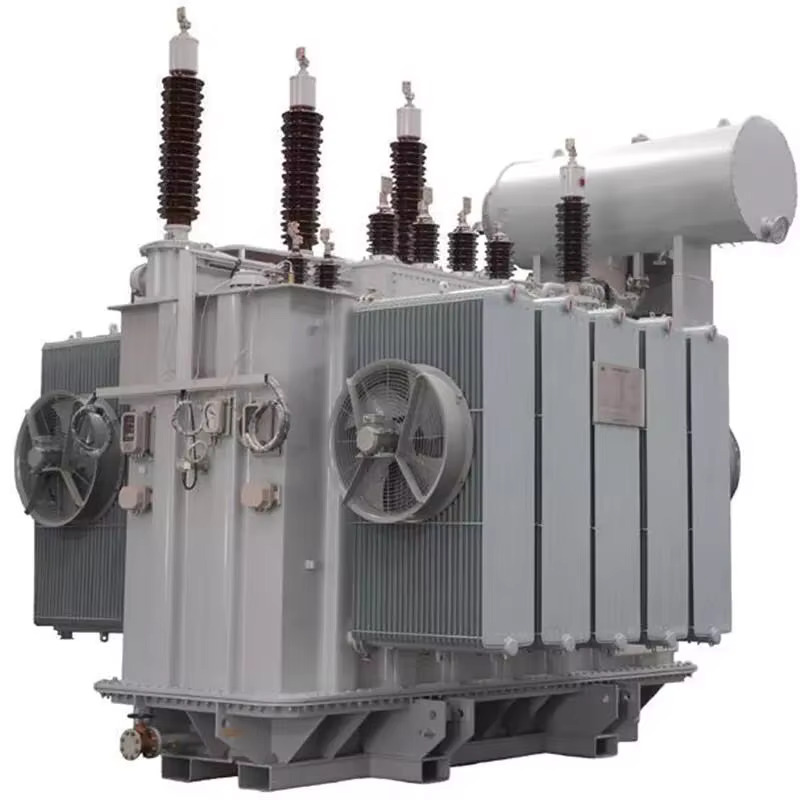

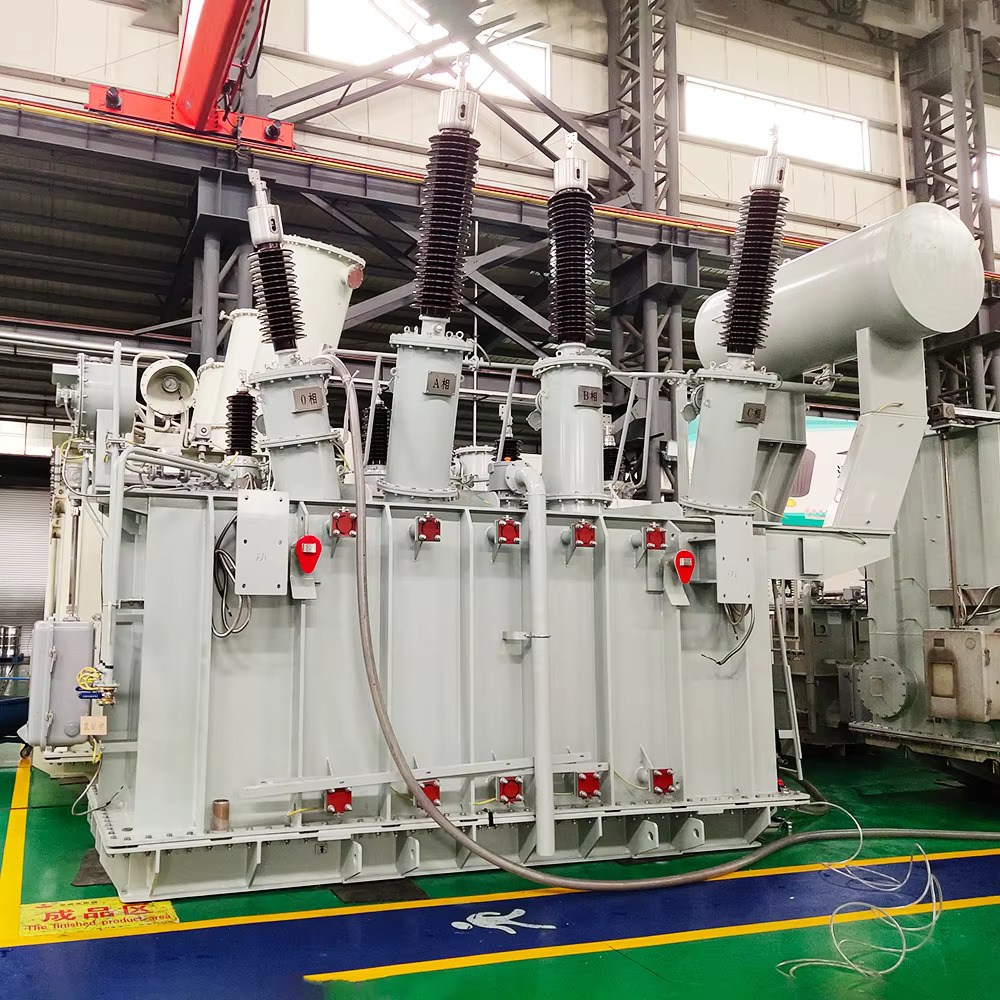

Factory Price IEC ANSI IEEE Standard 24MVA 20MVA Power Transformer 110KV 115KV 132KV Three Phase Oil Immersed Transformer
Description
Description
Product Description
Â
Rated Capacity | Voltage Ratio | Vector Group | No-load Losses(kw) | Impedance |
30kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 0.1 | 4% |
50kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 0.13 | 4% |
100kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 0.2 | 4% |
200kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 0.34 | 4% |
315kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 0.42 | 4% |
500kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 0.6 | 4% |
1000kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 1.15 | 4.5% |
1250kva | 6kv/11kv/33kv | Dyn11/Yd11/Yyno | Â | 4.5% |
2500kva | 11kv/33kv | Dyn11/Yd11/Yyno | 2.3 | Â |
4000kva | 11kv/33kv | Dyn11/Yd11/Yyno | 2.8 | Â |
10mva | 11kv/33kv/69kv/110kv | Dyn11/Yd11/Yyno | Â | Â |
40mva | 11kv/33kv/69kv/110kv | Dyn11/Yd11/Yyno | Â | Â |
100mva | 11kv/33kv/69kv/110kv/220kv | Dyn11/Yd11/Yyno | Â |
Specification
Item | Value |
Place of Origin | China |
Brand Name | FIRST POWER |
Model Number | S11 |
Phase | Three |
Coil Number | 2 |
Usage | POWER DISTRIBUTION TRANSFORMER |
Coil Structure | ROUND |
Rated Primary Voltage | 110 |
Rated Secondary Voltage | 0.38 |
Power | AC/DC |
Product name | Power Transformer 110KV 115KV 132KV Oil Immersed Transformer |
Standard | IEC ANSI IEEE |
Transformer type | Electric Power Transformers Oil Transformer |
Rated capacity | 10KVA-50000KVA |
Vector Group | Dyn11/Yyn0/Yd11/YNd11/Dyn5 |
Keyword | High Voltage Electric Power Transformer |
Feature | 20KV 33KV 35KV 110KV Power Transformer |
Winding Material | 100%Copper |
Frequency | 50/60Hz/customize |
Application | PowerSupply Distribution System Power Transformer |
